The TS-C100 incorporates several innovative structures and technical improvements. Built in new ranging circuit system, the TS-C100 adopts an ultra-low noise broadband amplifier with independent intellectual property rights, greatly improving the accuracy of measurement. The mechanical structure features an integrated CCD and a double-bead shaft for the horizontal and vertical axes, which benefits the angular accuracy up to 2”.
Featuring advanced noise phase analysis algorithm, thevTS-C100 greatly reduces the interference of various noises on the phase measurement results under bad weather and weak signal conditions. The road measurement program can calculate horizontal and vertical road curves of any line type, and allows discontinuous change in radius of horizontal curve.
With prism-free measurement technology, the TS-C100 can tackle with all kinds tasks even in harsh environment with high speed and high efficiency. Featured programs such as coordinate measurement, angle measurement, traverse measurement, road design and area calculation, it greatly expands the scope of application to land surveying, roadway surveying, power line inspections, forensics investigation, construction, inspection, mining and other scenes.
Clear interface supports EXCEL and DAT file import/export; 19-bit code displays makes the point information clear at a glance; The users can add known point files, and invoke the coordinates of the known point for all the projects. TS-C100 can transmit data bidirectionally through bluetooth and U
disk, and be controlled through measurement software such as Field Genius in real time.

• 2" Angle Measurement
• 30x Telescope Magnification
• Dual Axis Compensation
• 0.1″/1″/5″/10″ Minimum Increment
• Compensator Range ±3'
• Up to 1000m Without Prism
• Up to 5000m With Prism
• 1.2m Minimum Focusing Distance
• 2mm+2ppm Prism Accuracy
• 3mm+2ppm Non-Prism Accuracy
• Fast and Reliable Measurement
• Tilt Sensor: Dual （working range: ±3′, accuracy: 1″）
• Atmosphere Correction: Manual Input, Auto Correction
• Prism Constant: Manual Input, Auto Correction
• Communications: USB Port, BlueTooth
• Plummet: Laser Plummet, 5-Levels Adjustment
• Screen Type: LCD 6 lines
• Keyboard: Alphanumeric
• Digital Display: Maximum: 99999999.9999 & Minimum：0.1mm (4 decimal places optional）

Package Details:

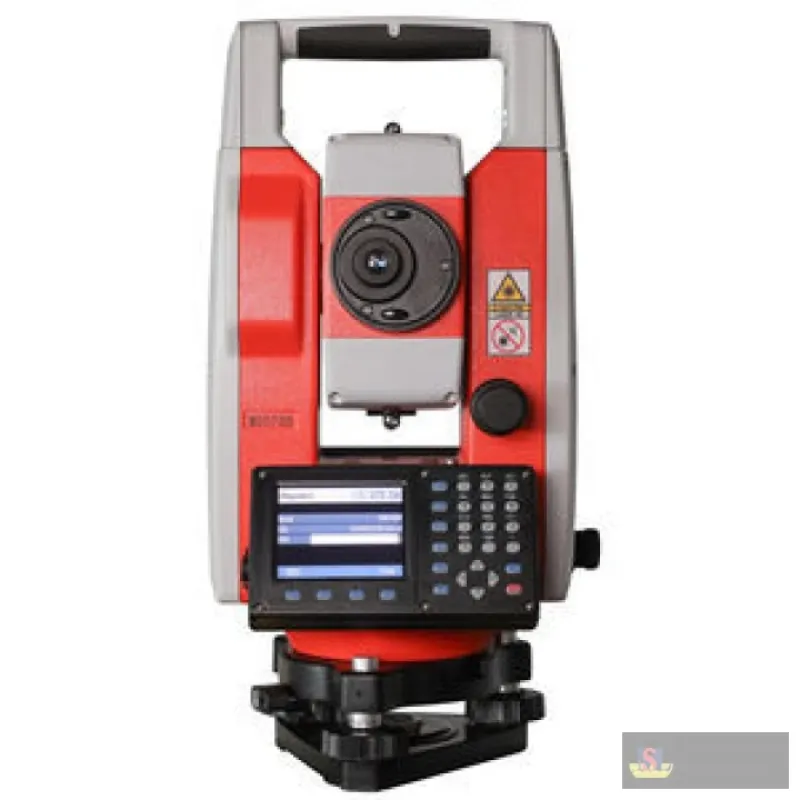

• Comnav TS-C100 Total Station
• G21019 Heavy duty fiberglass tripod with dual lock , flat head
• G33008-10 1.5-2.6m Quick Change Aluminum Prism Pole
• G31001-FOB/YLB 64mm Anodized, Sliver Coated Circular Prism
